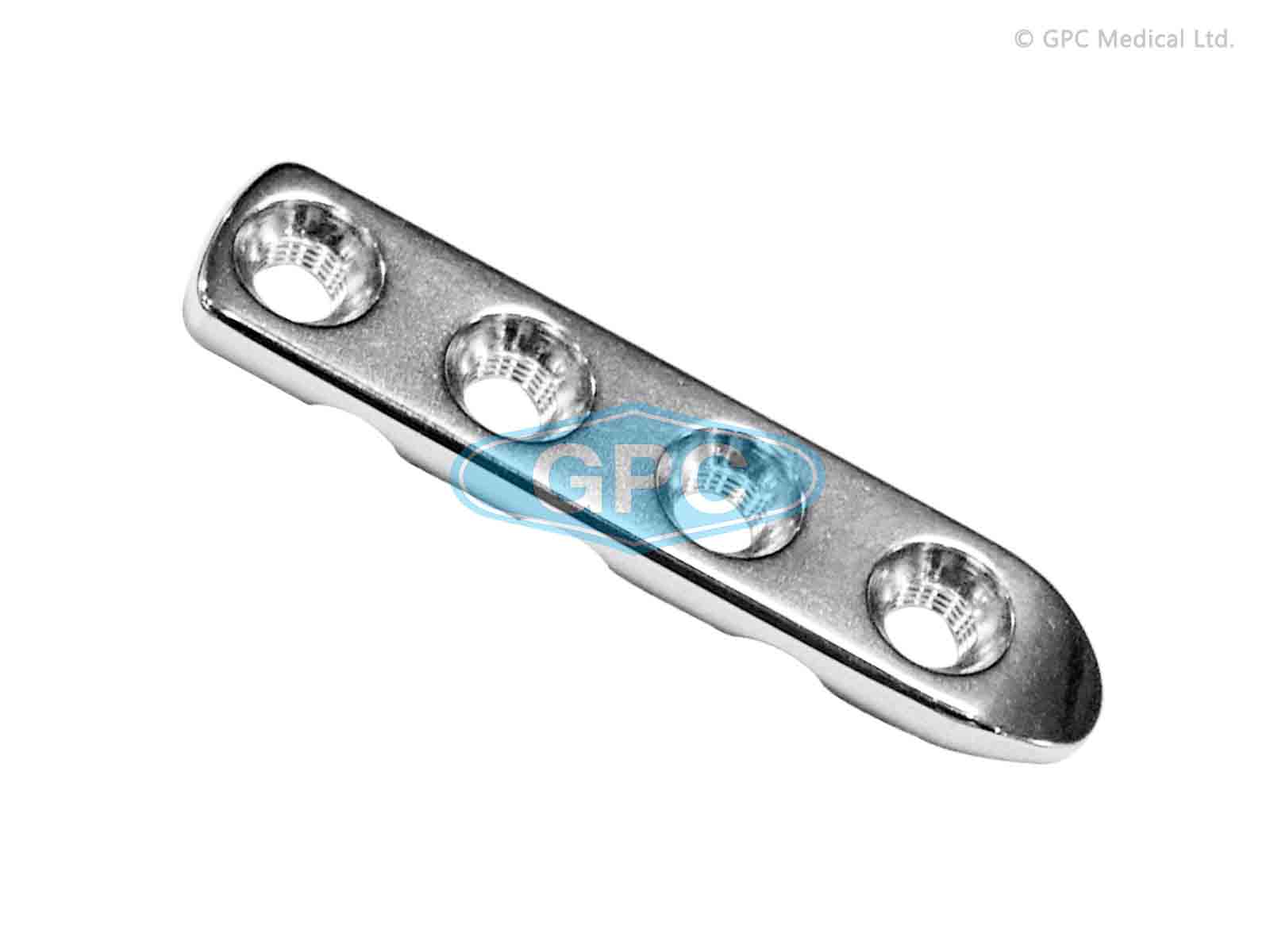

2.7mm Stacked Locking Plate

2.7mm Stacked Locking Plate

2.7mm Stacked Locking Plate

Model No: 886VT

Indications

  • Fracture of radius and ulna in small breed dogs.
  • Pancarpal, pantarsal arthrodesis.
  • Ilial Fracture

specifications

Features
  • Stacked plate having combination hole allows fixation of both conventional cortical screw as well as standard locking head screw.
  • LC cuts under the plate are designed well to maintain minimum contact between the plate and bone.
  • Designed in such a way that the plates can be stacked together in cases where additional strength is needed.
  • Plate is resistant to bending and thus allows easy contouring when required.
  • Widely used in cases where locking feature of the plate is required without any compression.
  • Plate is used with locking 2.7mm screw or 2.7mm cortical screw.
  • Available in stainless steel and titanium

No Of Holes

 Code

SS

Titanium

4

886.01VT

886.01TVT

5

886.02VT

886.02TVT

6

886.03VT

886.03TVT

7

886.04VT

886.04TVT

8

88605VT

886.05TVT

9

886.06VT

886.06TVT

10

886.07VT

886.07TVT

11

886.08VT

886.08TVT

12

886.09VT

886.09TVT

13

886.10VT

886.10TVT

14

886.11VT

886.11TVT

15

886.12VT

886.12TVT

16

886.13VT

886.13TVT

17

886.14VT

886.14TVT

18

886.15VT

886.15TVT
