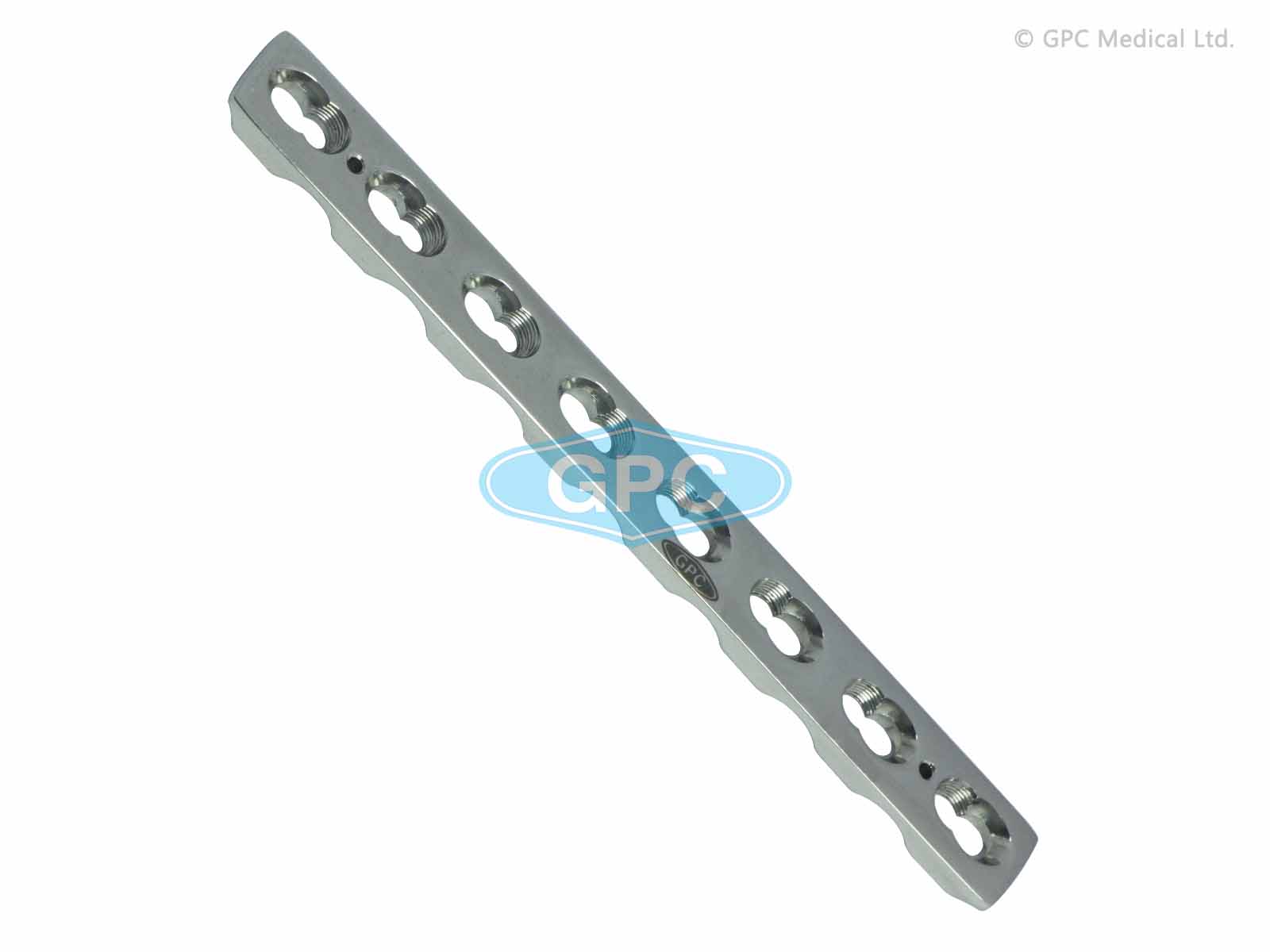

3.5mm Locking Compression Plate

3.5mm Locking Compression Plate

3.5mm Locking Compression Plate

Model No: 845VT

Indication

  • Concomitant fractures of tibia and femur
  • Concomitant fractures of radius and ulna
  • Long oblique fractures of pelvis
  • Ilial fractures

Request a Quote Request a Catalogue

specifications

Features

  • Designed with combination hole to accommodate the standard DCP and LC-DCP screws for fragment compression while the other half accommodates the locking head screws.
  • The locking head screws provides angular stability and helps in removal of compressive forces from the bone fragment surfaces.
  • Minimal contouring of plate required due to effective angular stability provided by the locking head screw.
  • Fixation with 3.5mm locking screw and 3.5 mm cortical screw
  • Available in stainless steel and titanium

No. of
  Holes

CODE

  S.S.

  Titanium

  5

  845.05VT

  845.05TVT

  6

  845.06VT

  845.06TVT

  7

  845.07VT

  845.07TVT

  8

  845.08VT

  845.08TVT

  9

  845.09VT

  845.09TVT

  10

  845.10VT

  845.10TVT

  11

  845.11VT

  845.11TVT

  14

  845.14VT

  845.14TVT
