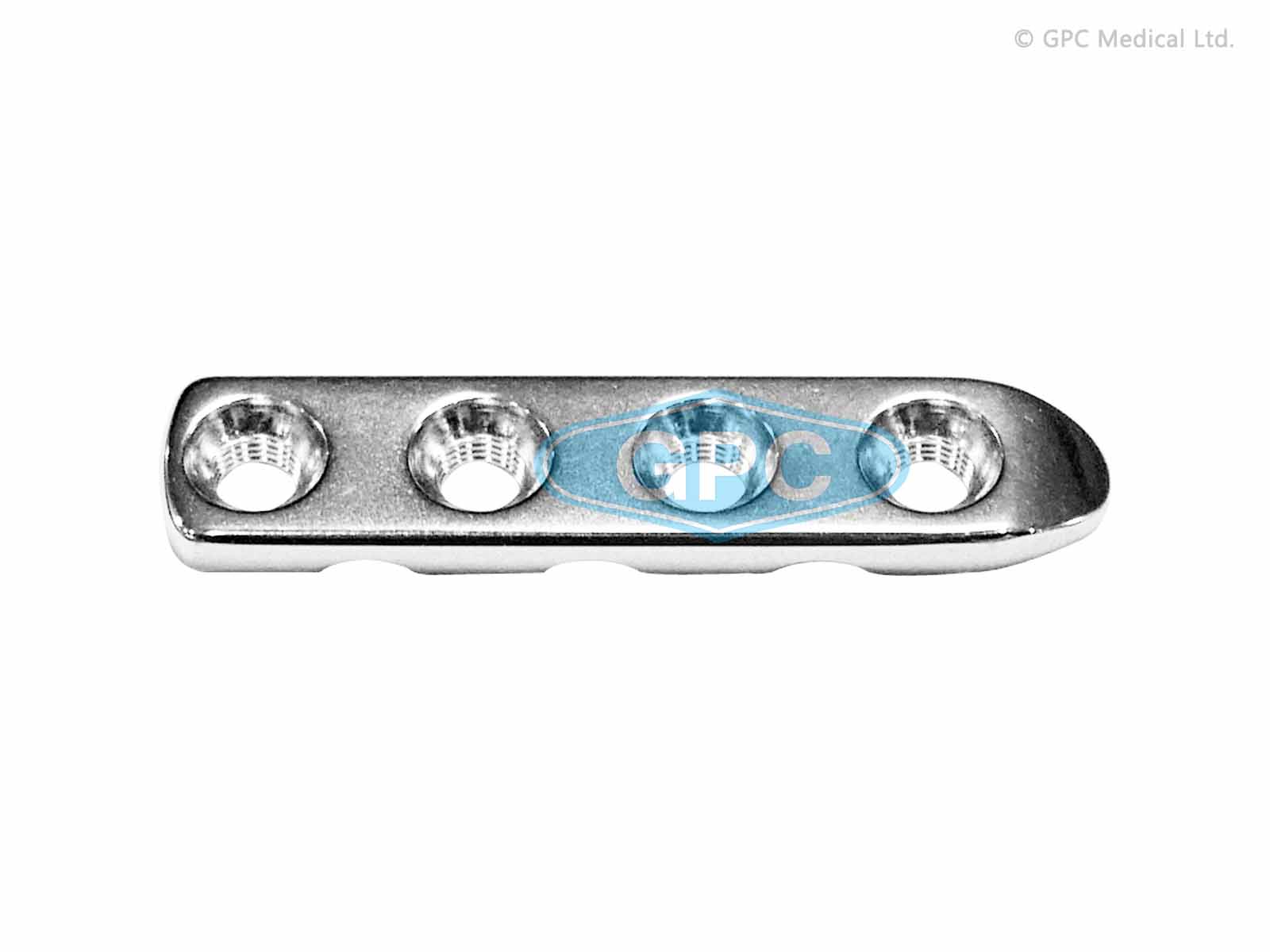

2.4mm Stacked Locking Plate

2.4mm Stacked Locking Plate

2.4mm Stacked Locking Plate

Model No: 885VT

Indications

  • Distal radius Fractures

specifications

Features
  • Stacked plate having combination hole allows fixation of both conventional cortical screw as well as standard locking head screw.
  • LC cuts under the plate are designed well to maintain minimum contact between the plate and bone.
  • Designed in such a way that the plates can be stacked together in cases where additional strength is needed.
  • Plate is resistant to bending and thus allows easy contouring when required.
  • Widely used in cases where locking feature of the plate is required without any compression.
  • Plate is used with locking 2.4mm screw or 2.4mm cortical screw.
  • Available in stainless steel and titanium.


No Of Holes

 Code

SS

Titanium

4

885.01VT

885.01TVT

5

885.02VT

885.02TVT

6

885.03VT

885.03TVT

7

885.04VT

885.04TVT

8

885.05VT

885.05TVT

9

885.06VT

885.06TVT

10

885.07VT

885.07TVT

11

885.08VT

885.08TVT

12

885.09VT

885.09TVT

13

885.10VT

885.10TVT

14

885.11VT

885.11TVT

15

885.12VT

885.12TVT

16

885.13VT

885.13TVT

17

885.14VT

885.14TVT

18

885.15VT

885.15TVT
